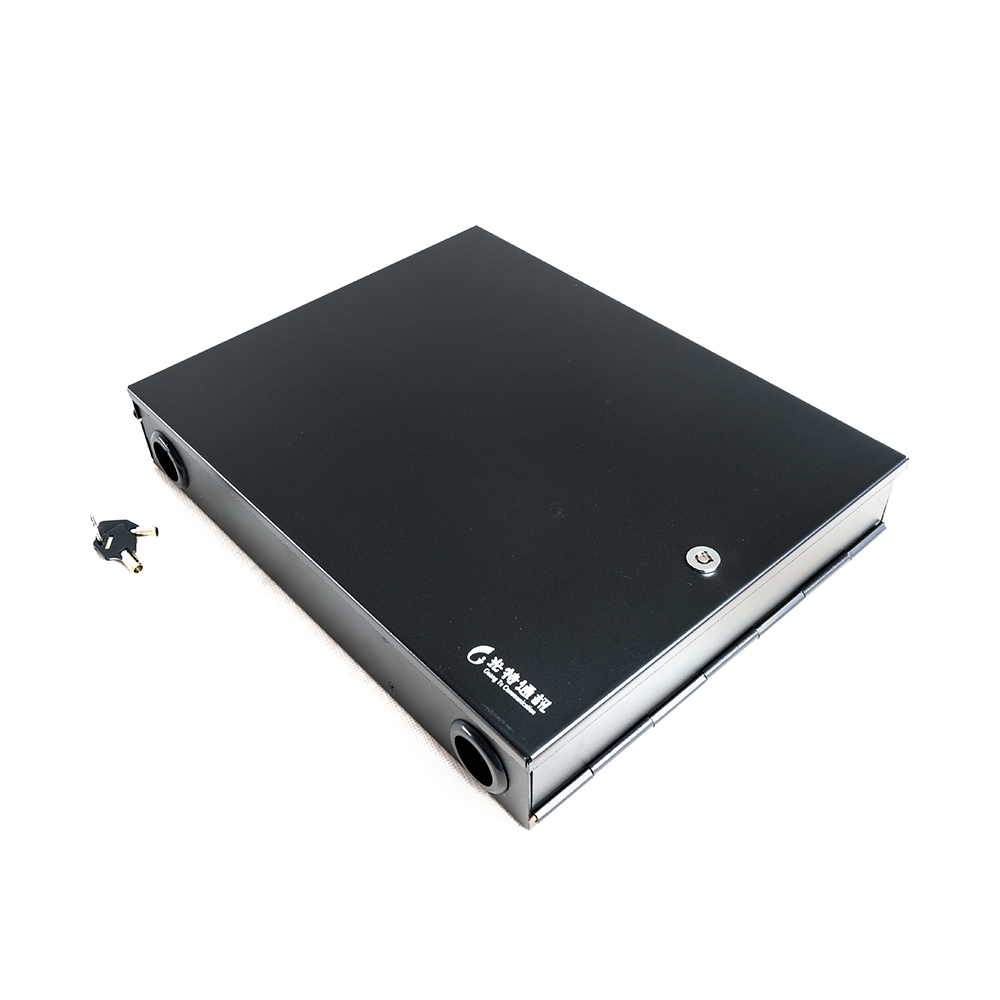

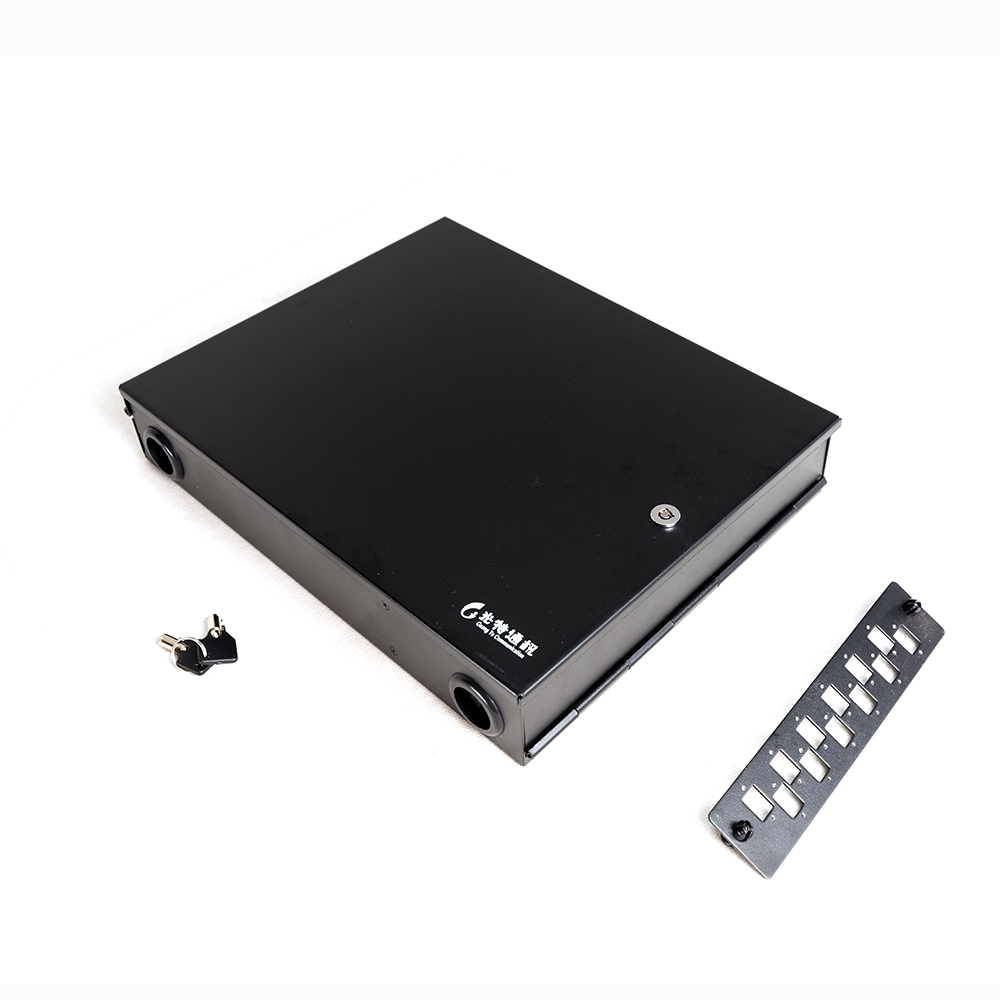

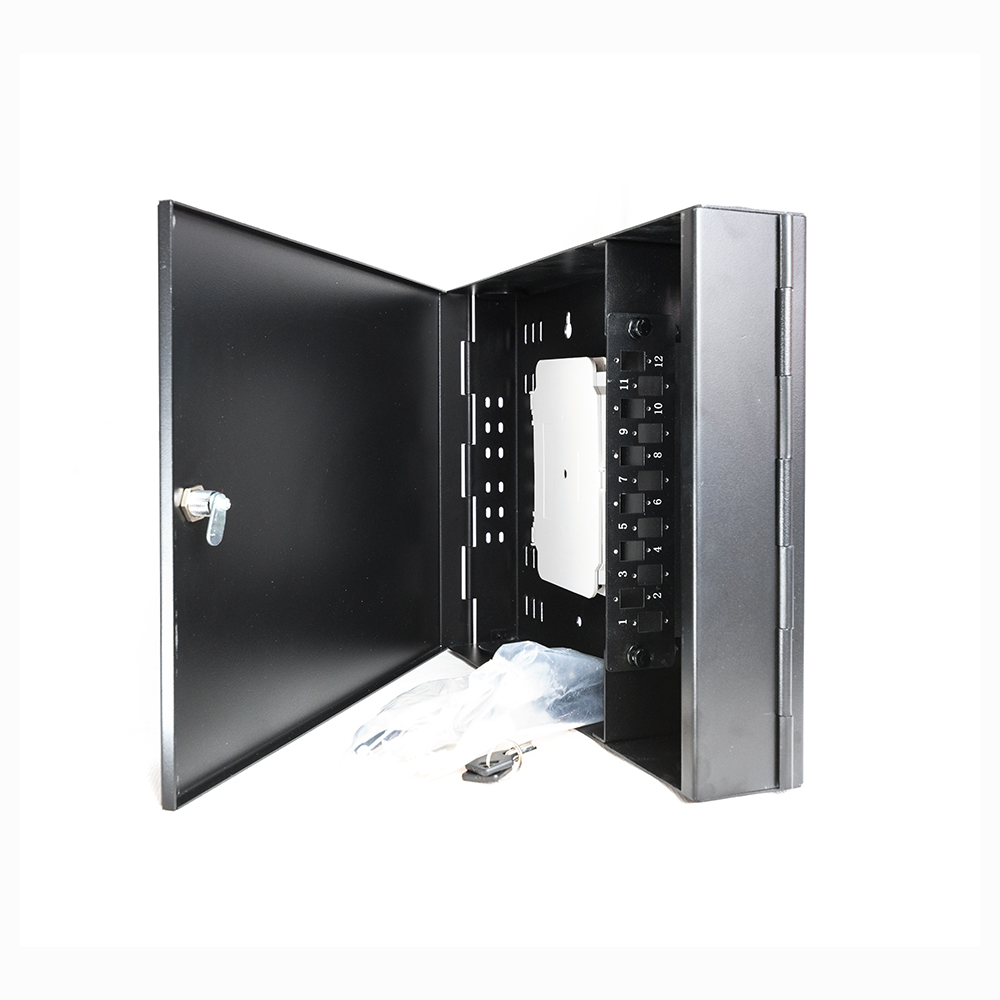

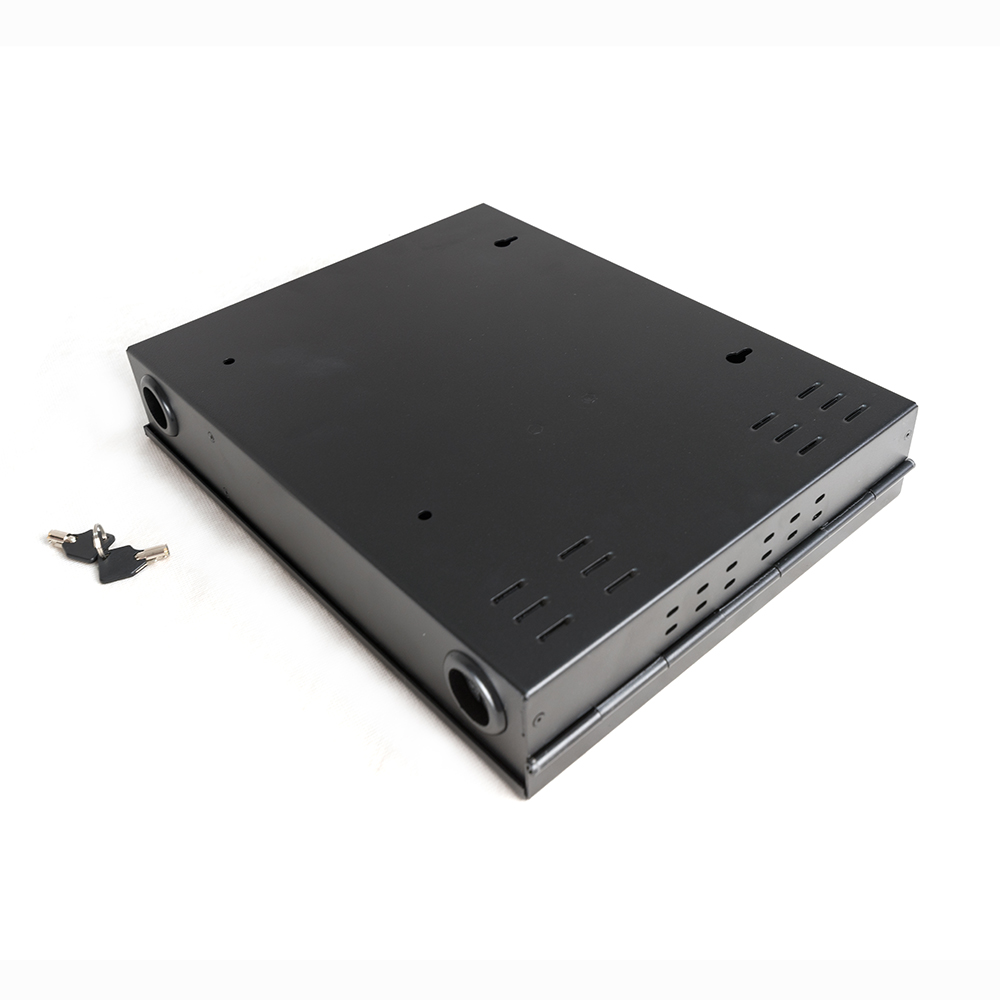

Flip Type Wall Mount Terminal Box
Wall Mount Access Termination Box壁挂式终端盒
Consultation

Plug frequency

≥1000times

Temperature

-40~+70°C

Optical fiber connector loss

≤0.3dB

Color

White or Black(Powder Coating)

Material

1.2mm Cold Rolled Steel

Installation Models

Wall mounted or DIN Rail mounted

Connect Models

Fusion splicing

Cable Input Ports

2


For home or work area, complete fiber, signal, voice access and port output for FTTD (fiber to desktop) system applications.


Different number of ports can be provided, mainly single and double ports; termination box is mainly 4 ports ,6ports, 8 ports,12ports; SC, ST, FC, LC, simplex and duplex types of port are available;
Box material is SECC or SPCC, surface electrostatic spraying.
With optical fiber cable introduction, fixing, grounding device
It can fully satisfied the requirements of fiber bending radius and provide safe protection for the core.
