Nominal work wave-length: 850nm, 1310nm, 1550nm
Operating temperature: -5ºC-+40ºC
Storage temperature: -40ºC+70ºC
Relative humidity:≤85%(+30ºC)
Atmospheric pressure: 70~106 KPa
Insertion loss: ≤0.2dB
Return loss: ≥45dB (PC), ≥ 50dB (UPC), ≥60dB (APC)
Isolation resistance: ≥ 1000MΩ/ 500V (DC)

Durability: >1000 times
Anti-voltage strength: ≥3000V (DC)/1min

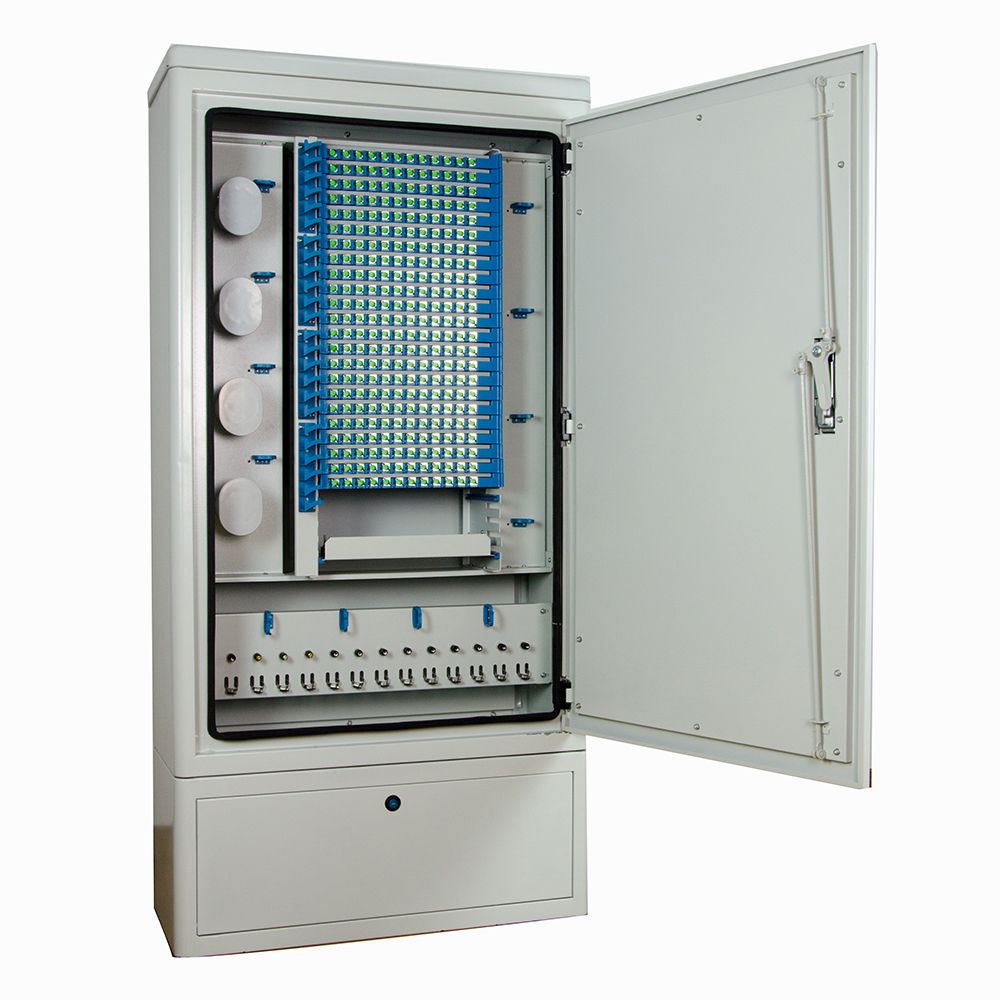

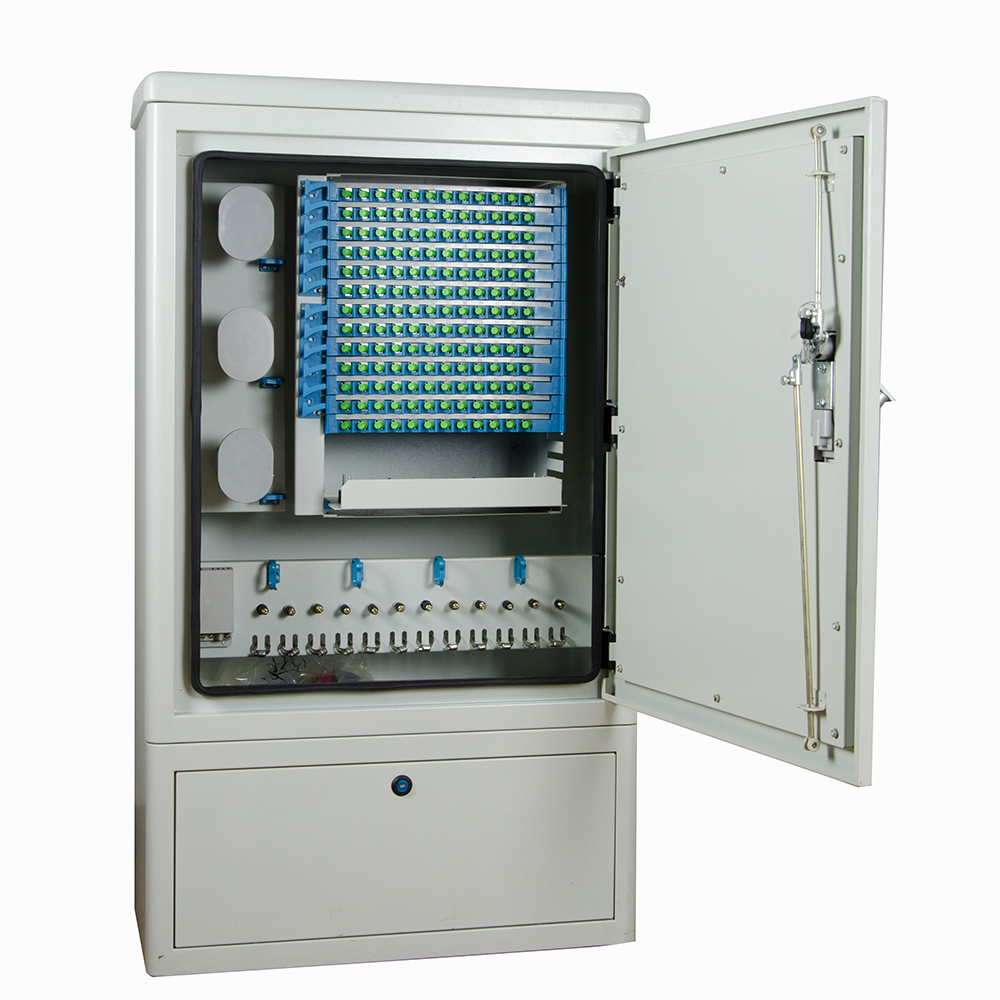

The interface equipment between the main optical cable and the distribution optical cable node in the optical cable access network has the functions of optical fiber fusion, storage and distribution, shall be installed on the ground or overhead.

High intensity and anti-erosion performance.
Be able to counter abrupt climate change and extreme environment.
Capacity can be flexibly customized as required.
Installation is quick and convenient.
Built-in direct splice unit is capable for providing direct connection function.

Perfect design of fiber wiring routing could facilitate management and maintenance of fibers.
With secure and reliable fastening and grounding protection devices for the optic fiber.
Applicable to strap-shaped and non-strap shaped fibers.
Material: SMC, Cold-rolled steel or stainless steel.
