Parameters | 1×2 | 2×2 | 1×4 | 2×4 | 1×8 | 2×8 | 1×16 | 2×16 | 1×32 | 2×32 | 1×64 | 2×64 |
Operation wavelength(nm) | 1260-1650 | |||||||||||
Optic fiber type | G652D、G657A1、G657A2 | |||||||||||
Insertion loss(dB) | 4 | 4.2 | 7.2 | 7.4 | 10.5 | 10.8 | 13.7 | 14 | 17 | 17.5 | 20.6 | 21 |
Uniformity (dB) | 0.4 | 1 | 0.6 | 1.5 | 0.8 | 1.5 | 1.2 | 2 | 1.5 | 2 | 2 | 2.5 |
Return loss(dB) | 55 | |||||||||||
PDL(dB) | 0.2 | 0.3 | 0.2 | 0.3 | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.35 | 0.5 |
Directionality (dB) | 55 | |||||||||||
Temperature stability (dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |||||||
Working temperature(℃) | -40 to +85 | |||||||||||
Storage temperature (℃) | -40 to +85 | |||||||||||
Dimension | 19’’ 1U/2U/3U |
CATV system
Optical fiber sensor
LAN network
FTTH application
Specification:
Low Insertion Loss,Low PDL

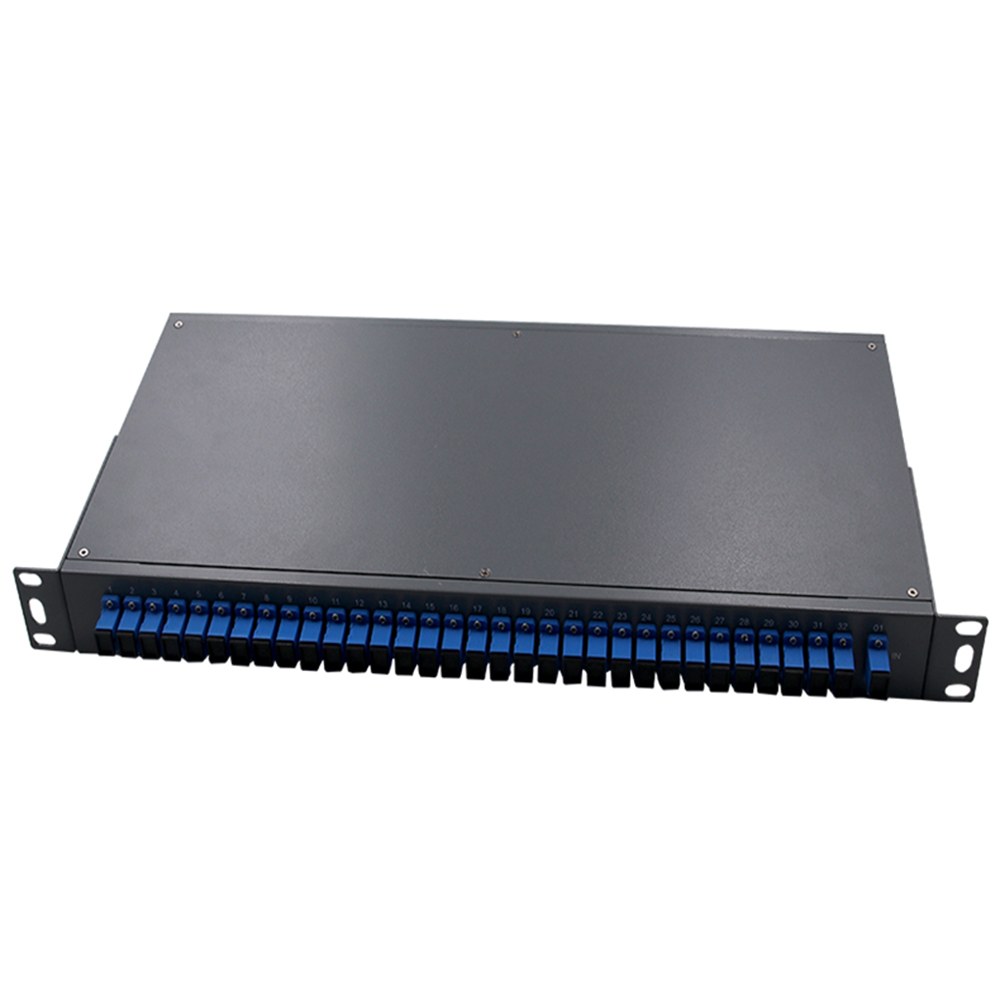

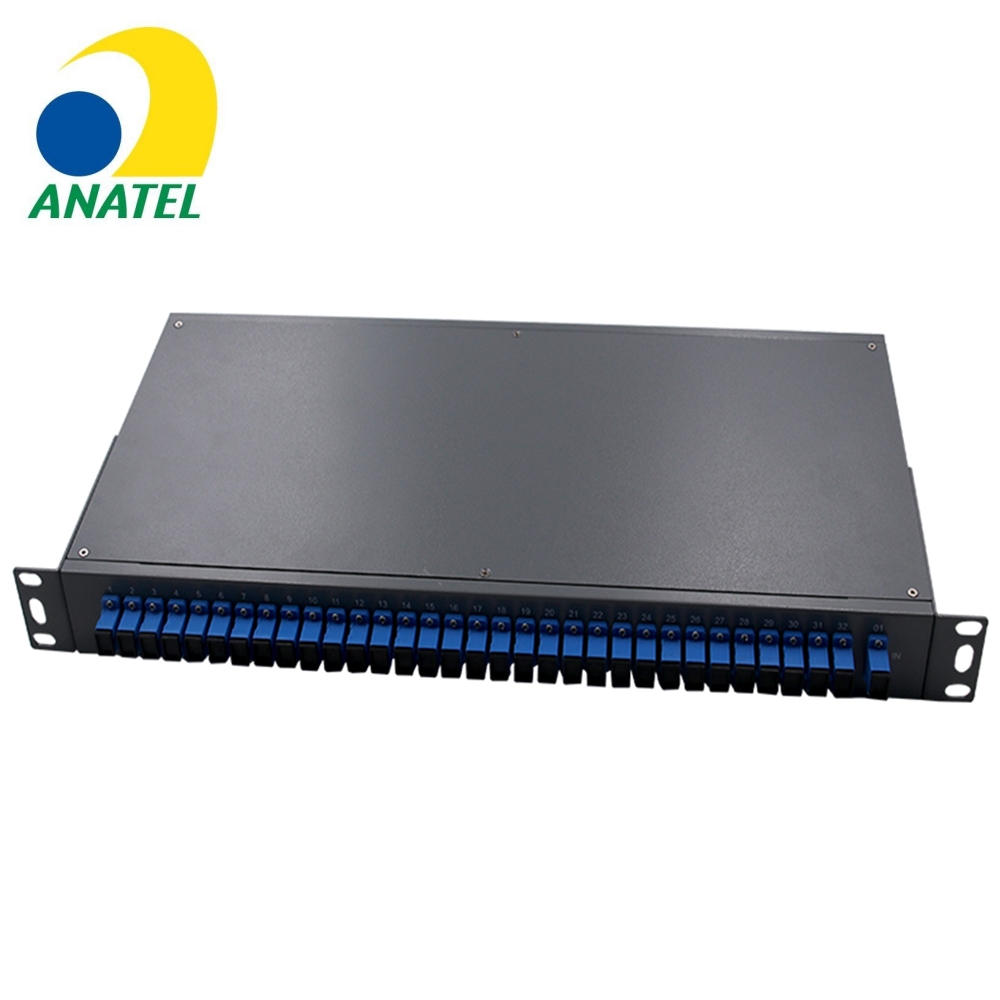

19” standard installation,It is compatible for ETSI installation type
Module design, slideway tray structure, easy to Install
Easy to maintain, high reliability
Compatible for 1x2~2x64 PLC splitter
