首页>>PRODUCT>>Fiber Connectivity>>Patch Cord>>Pigtail

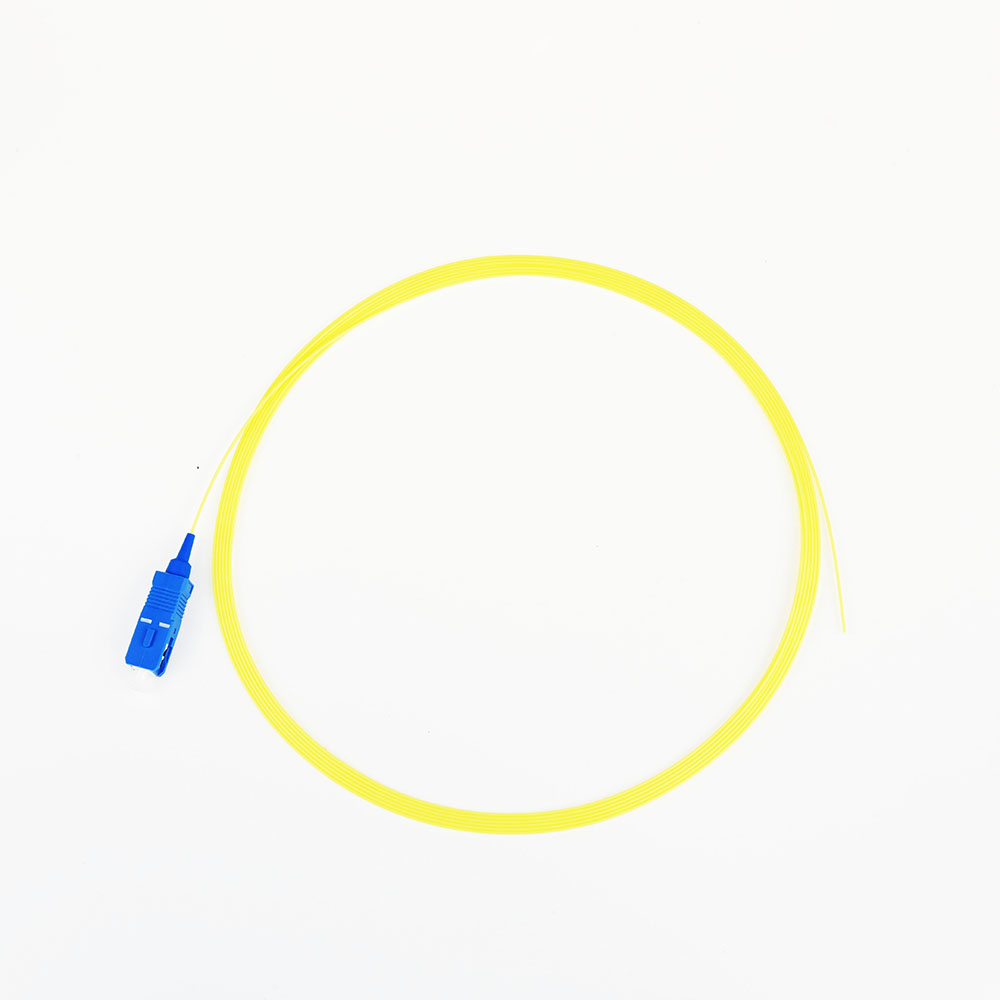

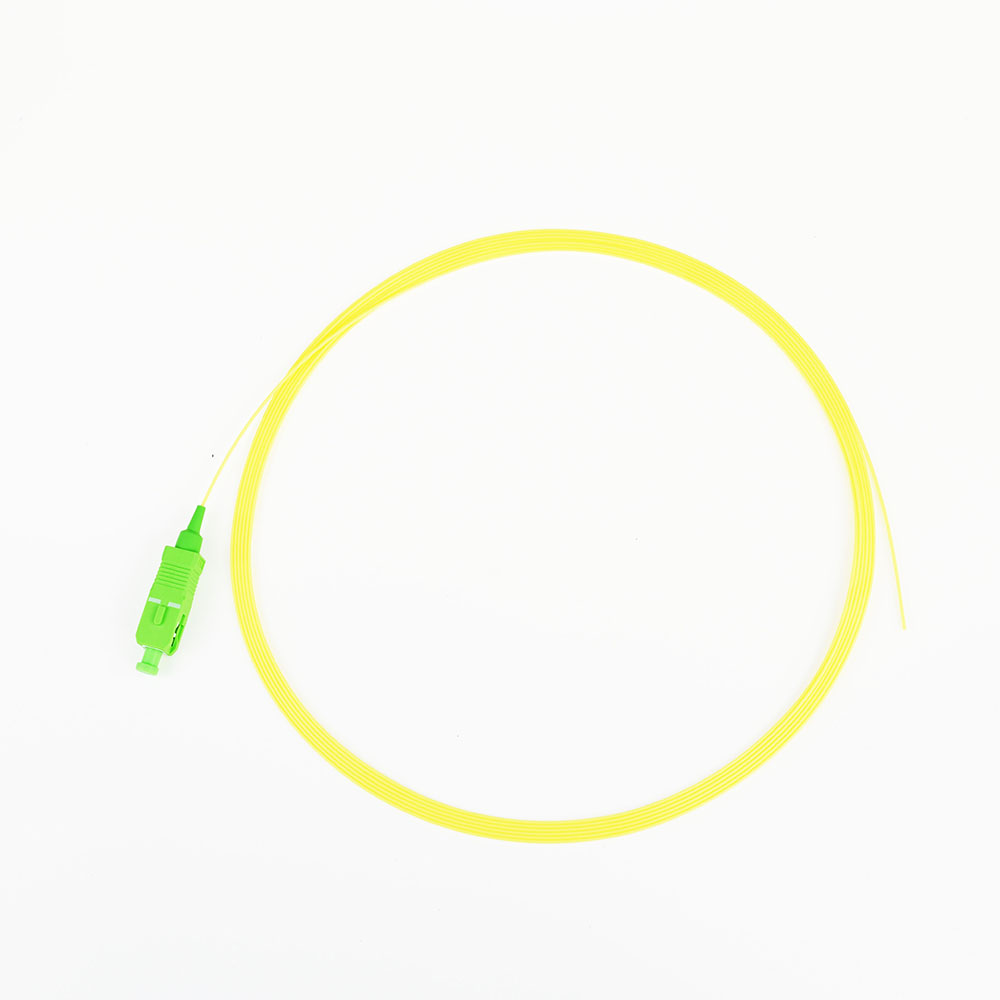

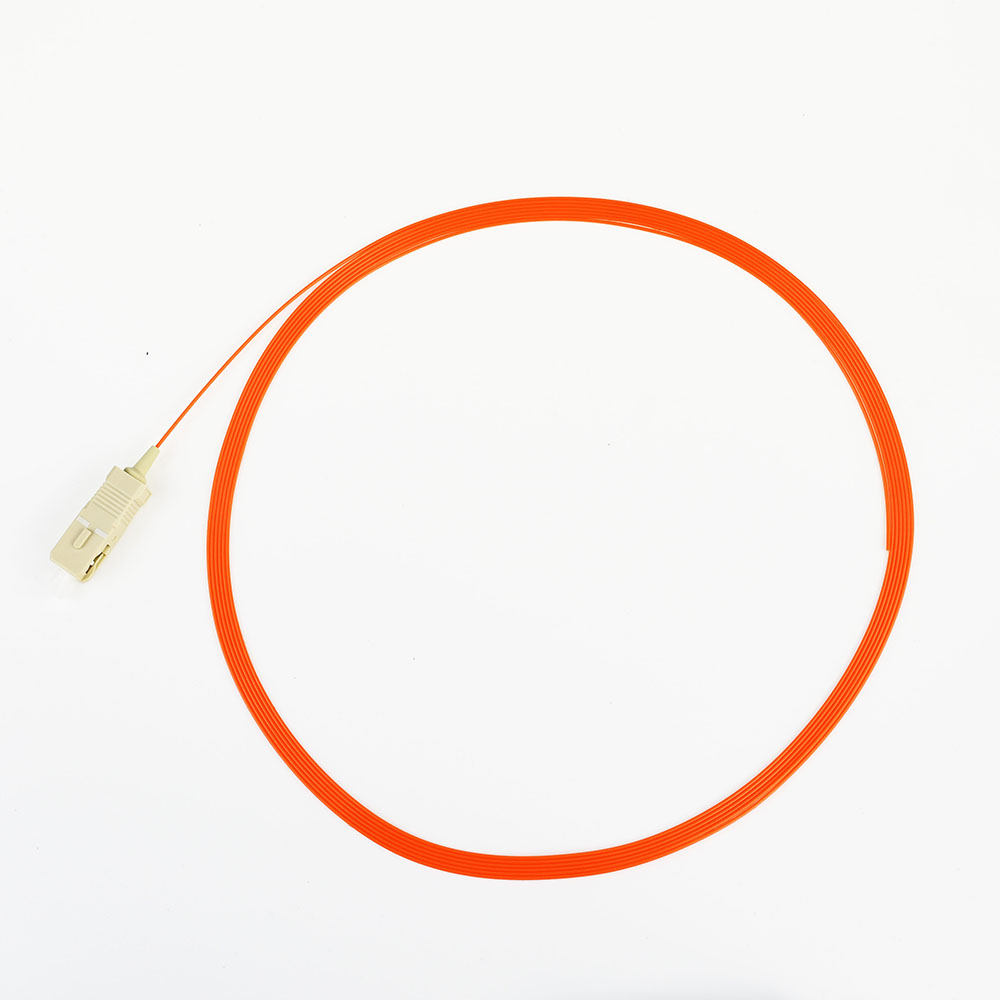

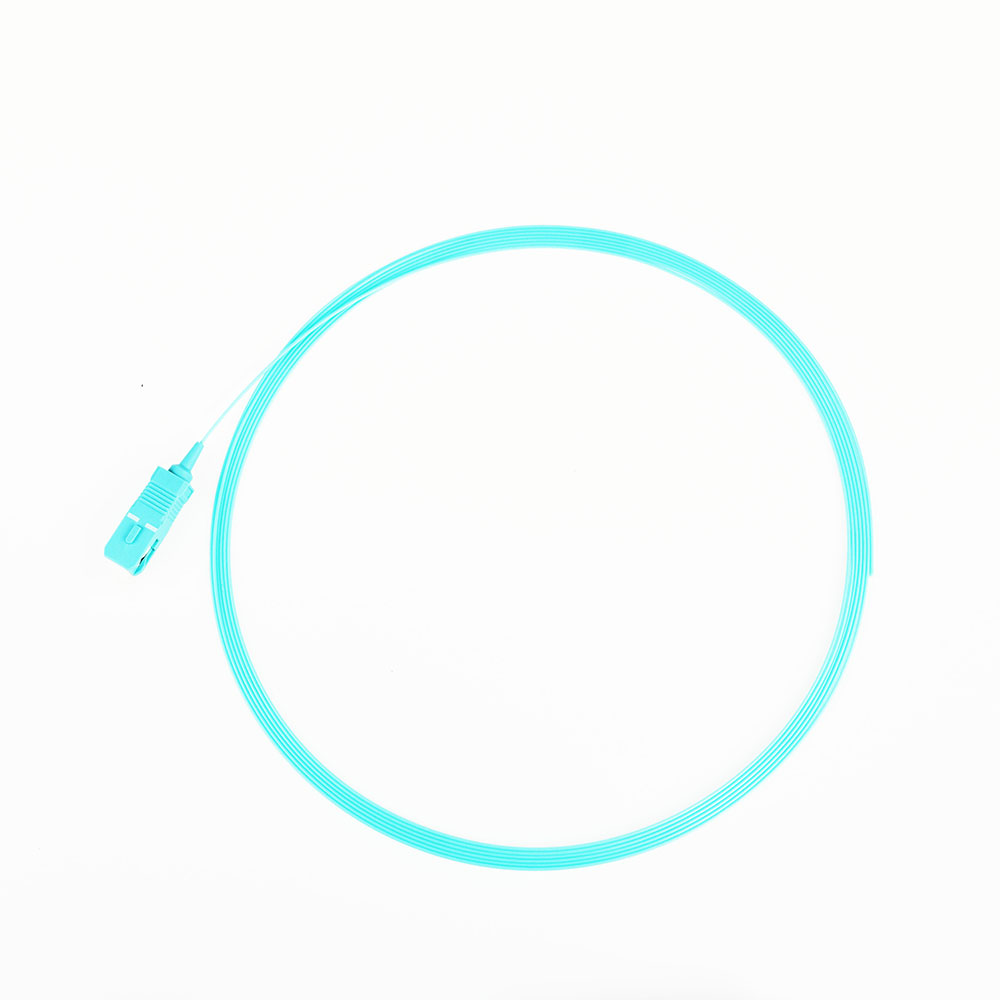

SC pigtail
JSOVsupplies fiber opticpatch cord in3 primary fiber versions including the 9/125um single mode, 62.5/125(OM1),50/125 (OM2,OM3,OM4, OM5)multi-mode,whichare made with a premium grade jacket with LC, SC, ST, and FC connectors. Simplexfiber patch cordand duplex fiberpatch cordare also available, with d...
Consultation

Production Type

Unit

ST

SC

FC

LC

PC

UPC

PC

UPC

APC

PC

UPC

APC

PC

UPC

APC

Optic Fiber Type


9/125, 62.5/125, 50/125

Insertion Loss

dB

≤0.3, typical ≤0.2

Return Loss(min.)

dB

≥45

≥50

≥45

≥50

≥65

≥45

≥50

≥65

≥45

≥50

≥65

Repeatability

dB

≤0.1

Interchangeability

dB

≤0.2

Operation temp

-25 to +70

-40 to +70

-25 to +70

Durability

time

≥500

Customization


MUE2000MPO are available


FTTH

CATV

LAN

Fiber Optic Sensor

Video Transmission



High quality components

Low insertion loss

High return loss

Good exchangeability

Good repeatability



Specification
Update:2019-10-21
Drawing
Update:2019-10-21
