GJYXFCH Self-supporting Bow type drop cable

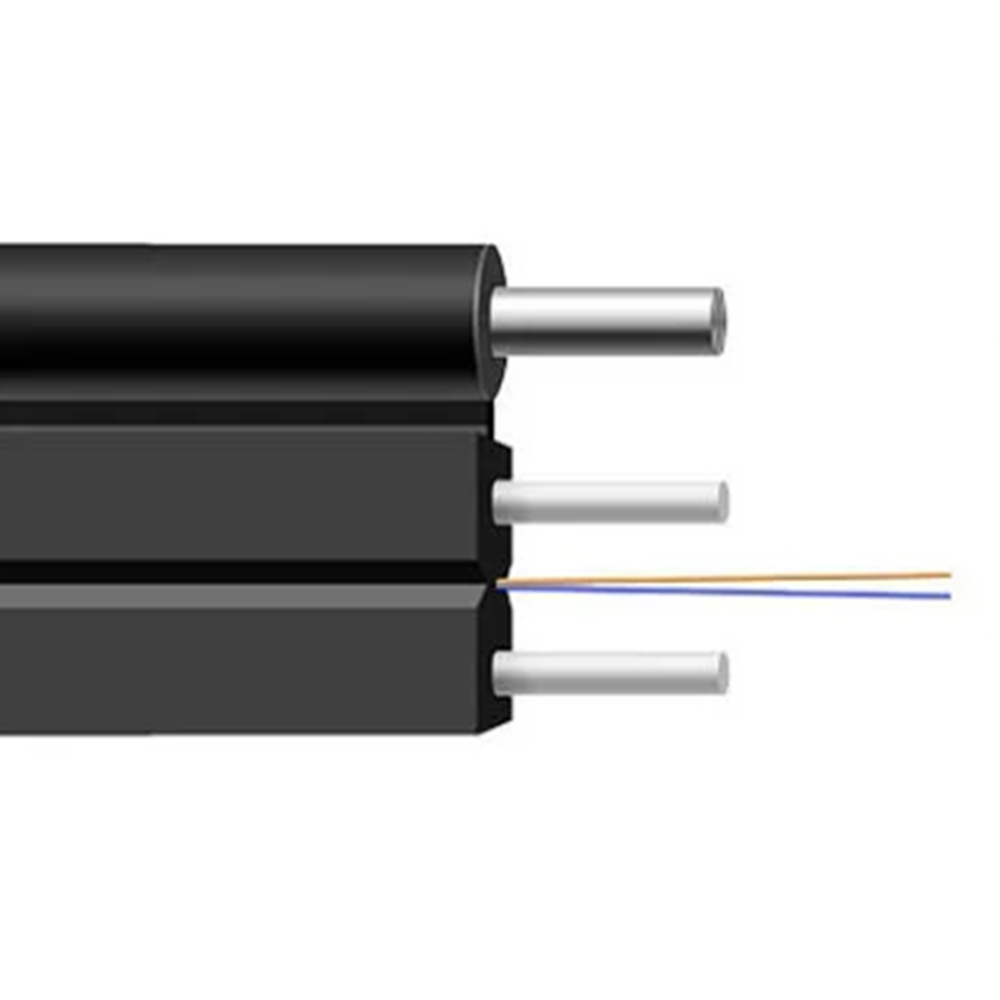

The optical unit fiber unit is positioned in the center, two parallel Fiber reinforced plastics (FRP) are placed at both sides, a steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.
Consultation

Fiber type

Attenuation

OFL

Effective mode broadband

SX

Bend radio min.

Condition

1310/1550nm

850/1300nm

850/1300

850nm

850nm


Typical value

Max. Value

Typical value

Max. Value

Unit

dB/km

dB/km

dB/km

dB/km

MHZ.km

MHZ.km

m

mm

G657A1

0.36/0.22

0.5/0.4






10

G657A2

0.36/0.22

0.5/0.4






7.5

OM3



3.0/1.0

3.5/1.5

1500/500

2000

300

30

OM4



3.0/1.0

3.5/1.5

3500/500

4700

550

30

Cable type

Fiber count

Cable size mm

Cable weight kg/km

Tensile strength long/short term N

Crush resistance long/short term

N

Bend radius static/dynamic

mm

GJYXFCH-1Xn

1

2.0*5.2(±0.1)

20

300/600

1000/2200

15/30

GJYXFCH-2Xn

2

2.0*5.2(±0.1)

20

300/600

1000/2200

15/30


Connection between terminal and terminal of the indoor floors (vertical) or the same floor (horizontal).


Light weight

Strong tensile resistance

Unique groove design

Easy to pee

Convenient connection

Simplified installation and maintenance

LSZH sheath

Environmental protection

Safety


Specification
Update:2019-10-31
Drawing
Update:2019-10-31
