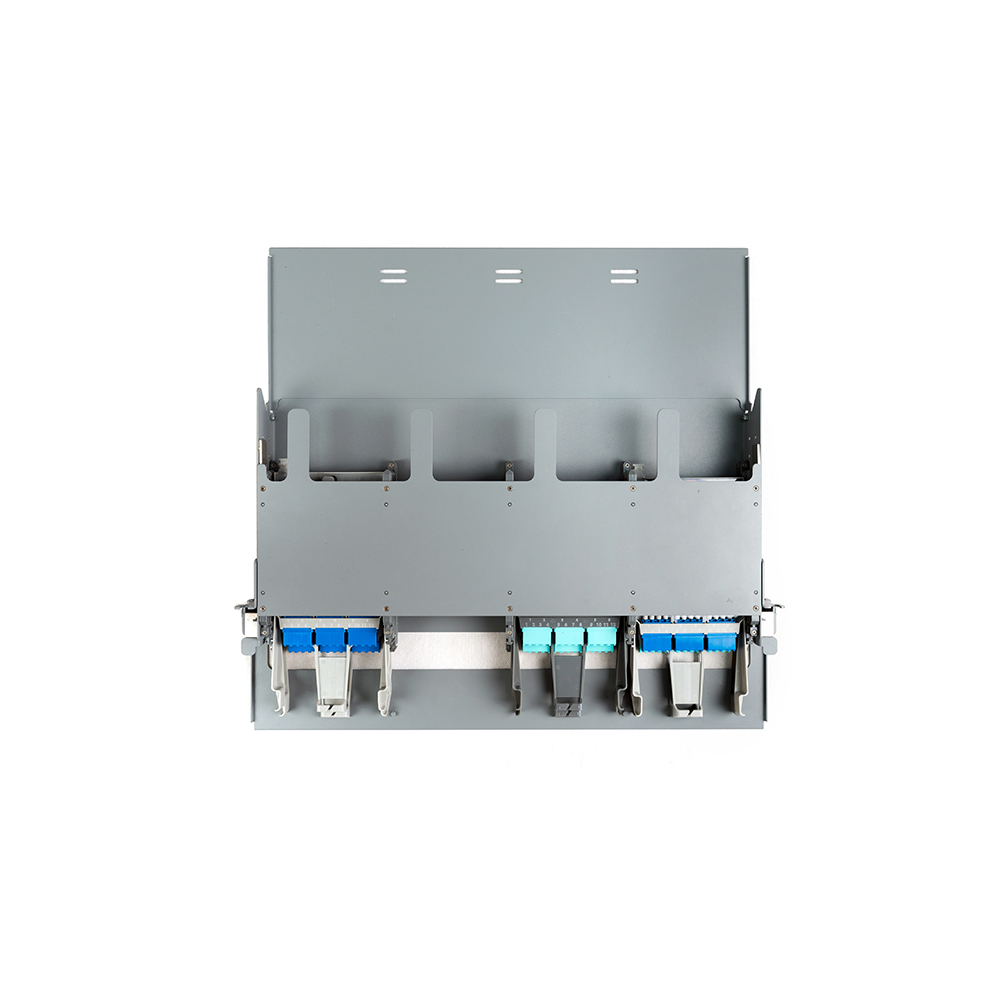

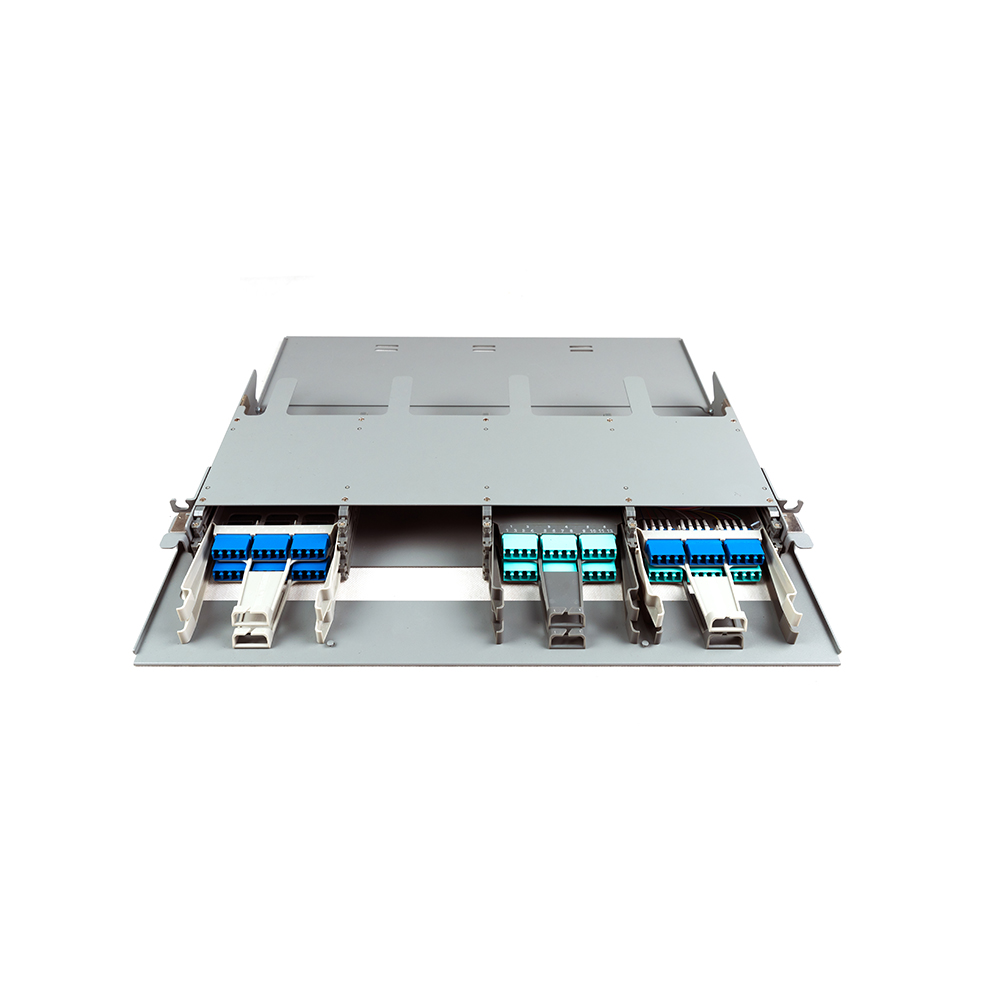

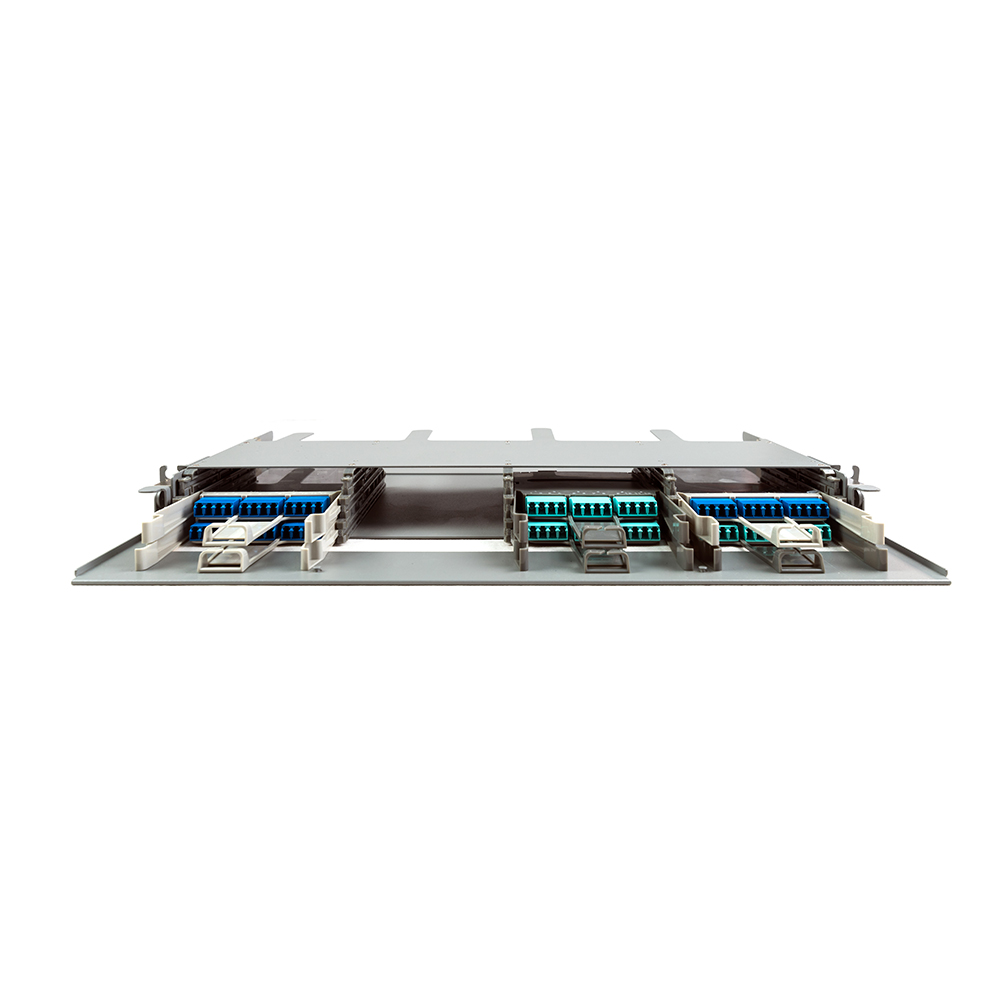

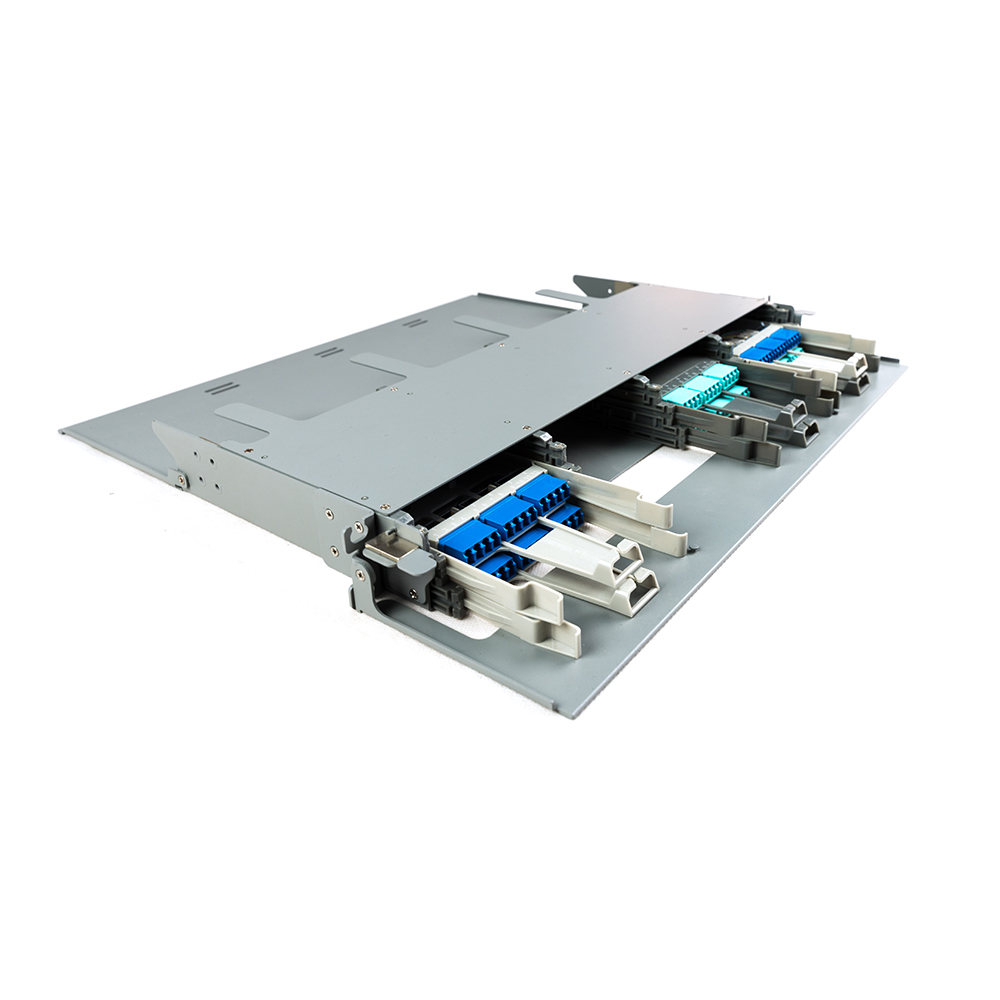

1U 144 cores Drawer Module Type HDDC Distribution Frame
Slidable Rack-mount fiber optic distribution frame has aluminum sliding fittings with self locking functions prevent the drawer from falling when moved, 19-inch rack mount for ST, SC, LC, MTRJ, FC adaptor. The drawer is the holding board for splicing, easy to withdraw the fibers when testing and dis...
Consultation

Installation Type

Rack Mounted, Wall Mounted, Floor Mounted

Structure Type

Fixed Type, Slide Type, Door Open

Application Environment

Indoor, Outdoor

Sheet Material

Cold Rolled Metal Sheet, Aluminum Sheet, Stainless Steel

Cold Rolled Sheet Thickness

1.2mm

Fiber Capacity

Minimum 1 core, maximum 144 cores

Adapter Panel Type

Metal, Plastic

Adapter Port

Simplex, Duplex, Quad-plex

Suitable Adapter Type

SC Simplex, SC Duplex, LC Duplex, LC Quad-plex, ST Round, ST Square, FC Square, FC D Type

Color

Black, Grey

Surface Treatment

Electroplating, electrophoresis, spraying, impregnation

Assembly

Empty, half loaded or full loaded

Dimension

Based on industrial standard, accordingly to design or customized

Accessories

Adapter, Pigtail, Fiber Splice Tray, Fiber Storage Tray, Cable fastener, strengthen member fastener, Splice Protection Sleeve, Cable Tie etc.

Customized Paint/Print

Available

OEM/ODM

Available



CATV
Active device termination
Telecommunication networks
Metro
Local Area Networks (LANs)
Data processing networks
Test equipment
Precise installations
Wide Area Networks (WANs)


Standard width make them matched with different optical distribution frame
Reliable fiber lead and perfect fix up design
Reasonable pigtail fixes up and perfect protection
Flexible design and enough space make them convenient for operations and maintenance
The shell is high intensified & insulated material, thus having excellent mechanic performance
Well processed surface minimize scratches.
The incision parts are well processed and avoid burr and sharp edge.
Strict packing to avoid transportation damage
