Dimension:L*W*H 370mm*420mm*125mm

Type: micro optic splitter

Adapter type: SC、LC

Coupling ratio: 1:32

Max capacity: 32 cores

Operation temperature: -40℃-+70℃

Pressure resistance: 62-106KPa

Tensile force: 1000N (minimum value)

Strength: 15KV(DC) / min. no flashover

Relative humidity: 90%

Bending radius: 40min

Return loss: PC (≥45dB) UPC(≥50dB) APC(≥60dB)

Insertion loss: UPC (≤0.3dB) APC (≤0.3dB)

Data transmission

Telecommunication

Testing equipment

WBN

Optical fiber CATV

LAN indoor/outdoor

High performance engineering plastic,be resistant to ultraviolet, rain

For indoor and outdoor aerial and wall mounted usage

Lock type structure makes it convenient to open and close

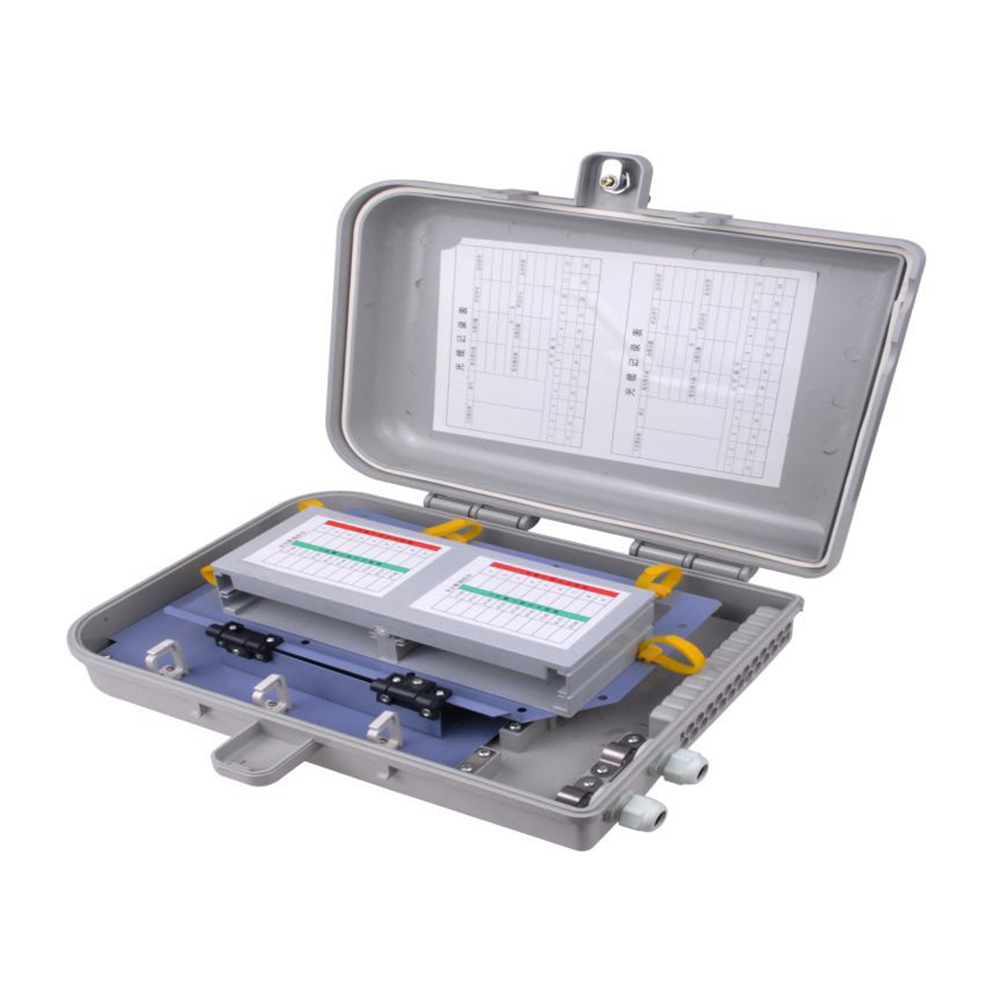

Page turning type fusion plate is easy to use, layout of completely separation of fiber fusion and fiber separation is more reasonable
