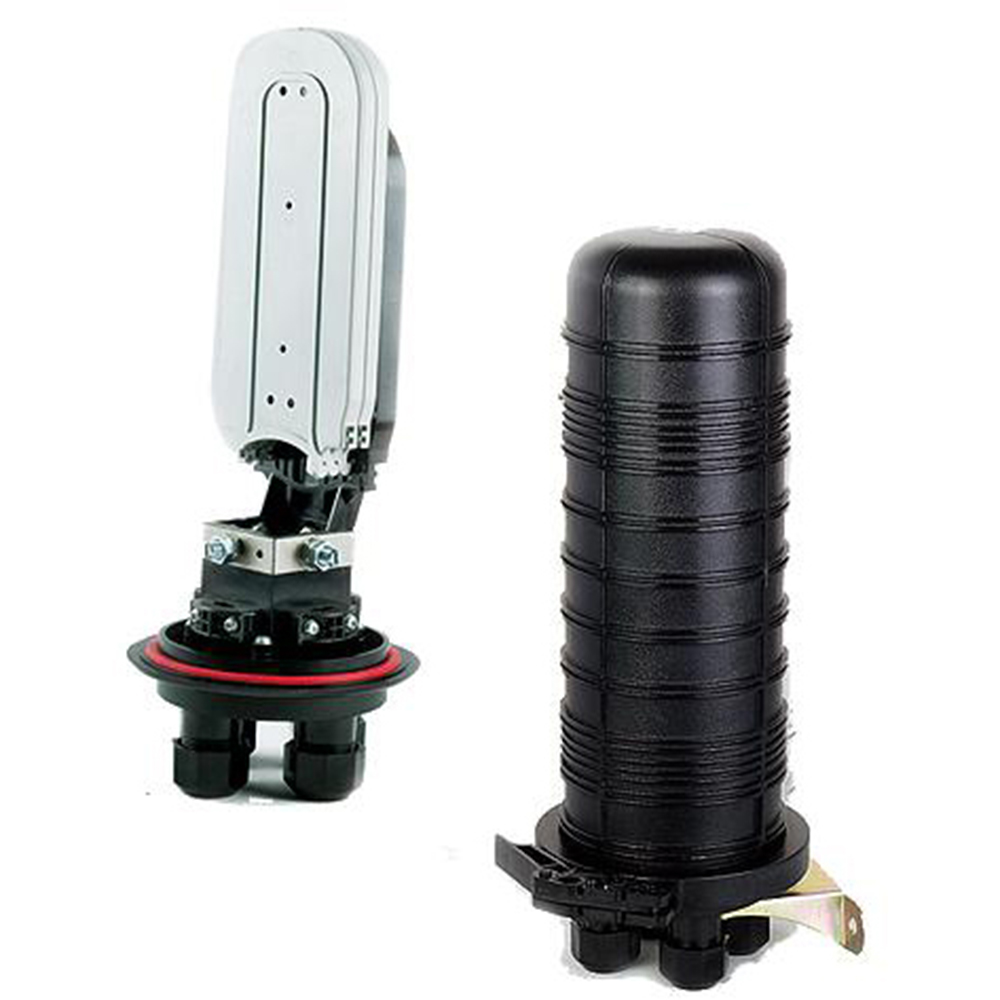

4 ports Mechanical 002
JSOV Fiber Optical Splice Closures in Heat Shrinktypeand Machanical type, Dome type and Horizontal type, canaccommodate from 6up to 576 fiber. They can be used in any environment,with excellent weather performance, waterproof,ultra-violet,dust-proofability.
Consultation

D×H: φ190×440MM

Cable ports: 4 ports

Cable Diameter: Max φ25

Max.Capacity (bunchy fiber): 96

Core capacity per tray: 12 or 24

Sealing structure: Heat-shrinkable sealing



Operation temperature: -40℃-+60

Bending radius: ≥40mm

Pressure resistance: 70-106KPa

Tensile force: 1000N (minimum value)

Strength: 15KV(DC)/min. no flashover


Pressure testing valve and earth deriving device

Integrated seal, air tight and water proof

Ideal for cable repair

ROHS compliant

Can be used in through, branch or mid span splice locations

Suitable for aerial, underground duct or direct burial applications


High strength material

Full components

Easy to maintain and install

Excellent seal performance

Both burying and aerial are available


Specification
Update:2019-10-14
Drawing
Update:2019-10-14
